HIGH SPEED STEEL ROUND DIES - B.S.W. / B.S.F.
SKU: 00268
- Made from high speed steel
- Also available in carbon steel
- Available in right hand and left hand threads
- Special sizes available

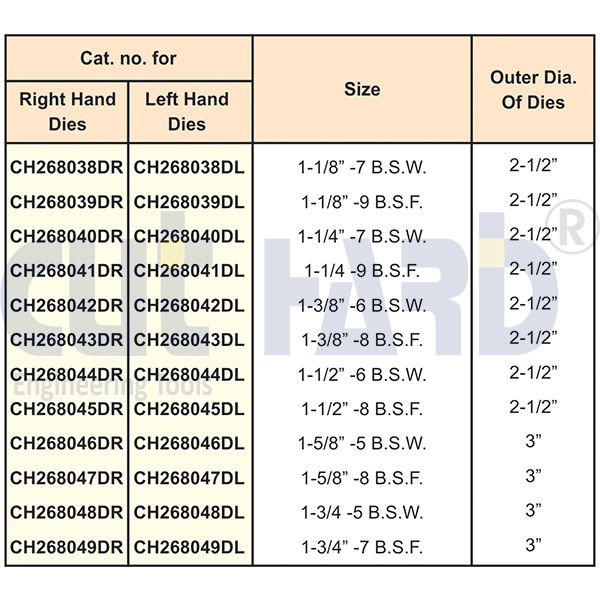

SIZES
| Cat. No. for | |||
|
Right Hand Dies |
Left Hand Dies |
Size |
Outer Dia. Of Dies |
| CH268001DR | CH268001DL | 1/16” -60 B.S.W. | 13/16” |
| CH268002DR | CH268002DL | 3/32” -48 B.S.W. | 13/16” |
| CH268003DR | CH268003DL | 1/8” -40 B.S.W. | 13/16” |
| CH268004DR | CH268004DL | 5/32” -32 B.S.W. | 13/16” |
| CH268005DR | CH268005DL | 3/16” -24 B.S.W. | 1” |
| CH268006DR | CH268006DL | 3/16” -32 B.S.F. | 1” |
| CH268007DR | CH268007DL | 7/32” -24 B.S.W. | 1” |
| CH268008DR | CH268008DL | 7/32” -28 B.S.F. | 1” |
| CH268009DR | CH268009DL | 1/4” -20 B.S.W. | 1” |
| CH268010DR | CH268010DL | 1/4” -26 B.S.F. | 1” |
| CH268011DR | CH268011DL | 9/32” -20 B.S.W. | 1” |
| CH268012DR | CH268012DL | 9/32” -26 B.S.F. | 1” |
| CH268013DR | CH268013DL | 5/16” -18 B.S.W. | 1” |
| CH268014DR | CH268014DL | 5/16” -22 B.S.F. | 1” |
| CH268015DR | CH268015DL | 3/8” -16 B.S.W. | 1” |
| CH268016DR | CH268016DL | 3/8” -20 B.S.F. | 1” |
| CH268017DR | CH268017DL | 7/16” -14 B.S.W. | 1-1/2” |
| CH268018DR | CH268018DL | 7/16” -18 B.S.F. | 1-1/2” |
| CH268019DR | CH268019DL | 1/2” -18 B.S.W. | 1-1/2” |
| CH268020DR | CH268020DL | 1/2” -16 B.S.F. | 1-1/2” |
| CH268021DR | CH268021DL | 9/16” -12 B.S.W. | 1-1/2” |
| CH268022DR | CH268022DL | 9/16” -16 B.S.F. | 1-1/2” |
| CH268023DR | CH268023DL | 5/8” -11 B.S.W. | 1-1/2” |
| CH268024DR | CH268024DL | 5/8” -14 B.S.F. | 1-1/2” |
| CH268025DR | CH268025DL | 11/16” -11 B.S.W. | 1-1/2” |
| CH268026DR | CH268026DL | 11/16” -14 B.S.F. | 1-1/2” |
| CH268027DR | CH268027DL | 3/4” -10 B.S.W. | 1-1/2” |
| CH268028DR | CH268028DL | 3/4” -12 B.S.F. | 1-1/2” |
| CH268029DR | CH268029DL | 13/16” -10 B.S.W. | 2” |
| CH268030DR | CH268030DL | 13/16” -12 B.S.F. | 2” |
| CH268031DR | CH268031DL | 7/8” -9 B.S.W. | 2” |
| CH268032DR | CH268032DL | 7/8” -11 B.S.F. | 2” |
| CH268033DR | CH268033DL | 15/16” -9 B.S.W. | 2” |
| CH268034DR | CH268034DL | 15”/16-11 B.S.F. | 2” |
| CH268035DR | CH268035DL | 1” -8 B.S.W. | 2” |
| CH268037DR | CH268037DR | 1” -10 B.S.F. | 2” |
| CH268038DR | CH268038DL | 1-1/8” -7 B.S.W. | 2-1/2” |
| CH268039DR | CH268039DL | 1-1/8” -9 B.S.F. | 2-1/2” |
| CH268040DR | CH268040DL | 1-1/4” -7 B.S.W. | 2-1/2” |
| CH268041DR | CH268041DL | 1-1/4 -9 B.S.F. | 2-1/2” |
| CH268042DR | CH268042DL | 1-3/8” -6 B.S.W. | 2-1/2” |
| CH268043DR | CH268043DL | 1-3/8” -8 B.S.F. | 2-1/2” |
| CH268044DR | CH268044DL | 1-1/2” -6 B.S.W. | 2-1/2” |
| CH268045DR | CH268045DL | 1-1/2” -8 B.S.F. | 2-1/2” |
| CH268046DR | CH268046DL | 1-5/8” -5 B.S.W. | 3” |
| CH268047DR | CH268047DL | 1-5/8” -8 B.S.F. | 3” |
| CH268048DR | CH268048DL | 1-3/4 -5 B.S.W. | 3” |
| CH268049DR | CH268049DL | 1-3/4” -7 B.S.F. | 3” |
